Quartz Glass / Heat-Resistant Glass

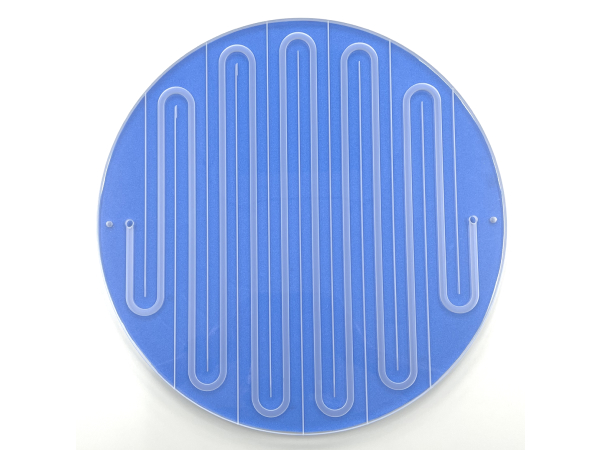

φ390 quartz joint - under development
| Product Name | φ390 quartz joint |
|---|---|
| Material | Quartz |
| Process | Two φ392 quartz plates of different thicknesses are joined together |
| Remarks |

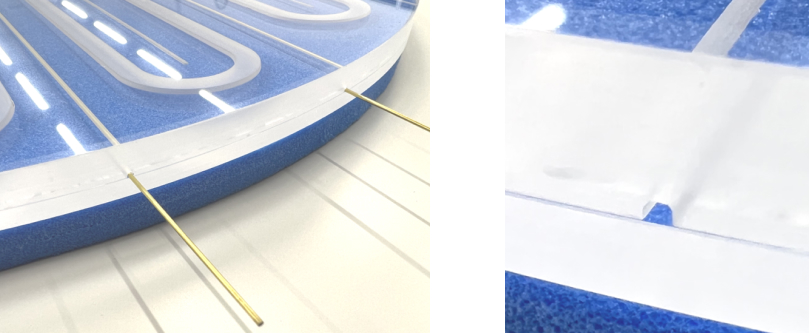

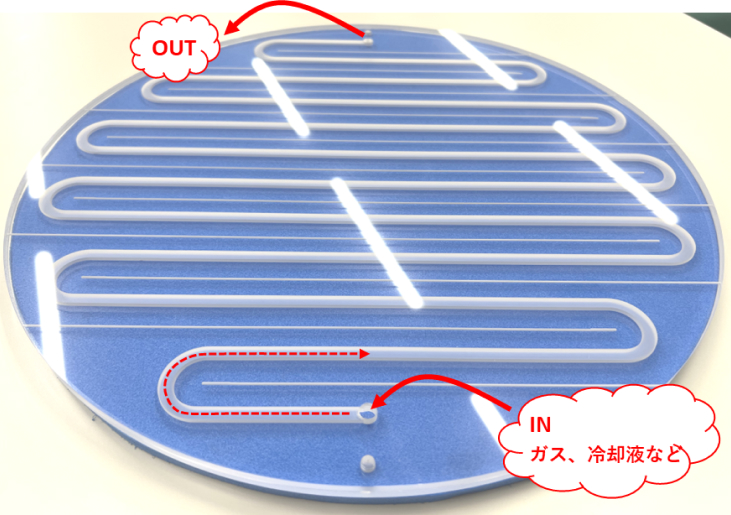

Outer Diameter : φ392mm □ Internal flow path *Forms a flow path of 5mm wide x 3mm high  □ Side hole *□ 1mm depth 360mm (longest part)
|
